Faital PRO 18HP1060

SKU: 18HP1060

1.783,81 lei
1.499,00 lei fără TVA

Disponibil pentru precomandă

Compară
0 People watching this product now!

Livrare rapidă

Produs garantat

Consultanță

Calitate garantată

Descriere

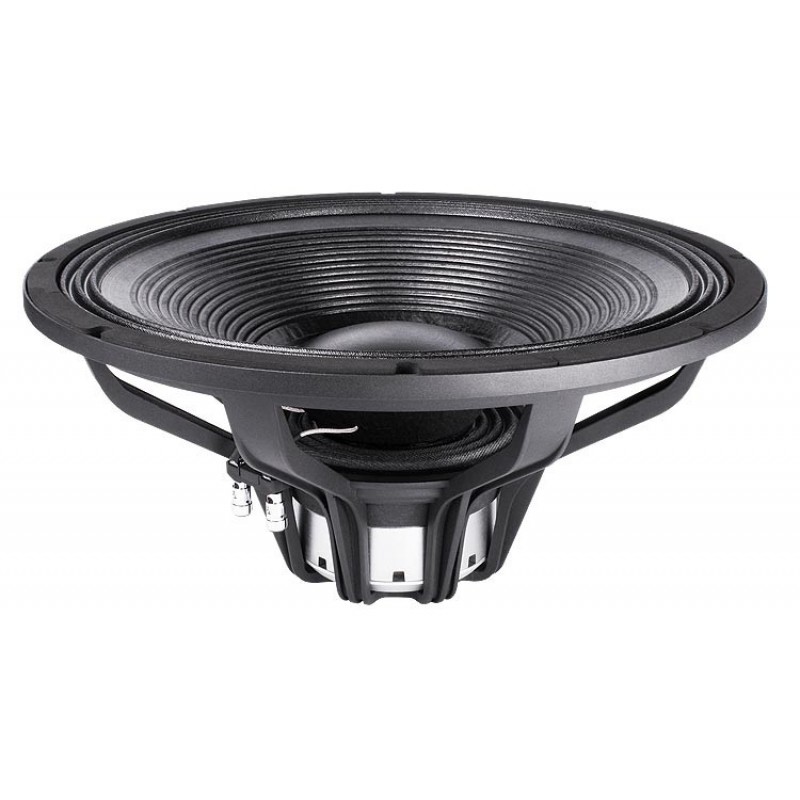

Faital Pro 18HP1060 18″ 1200W 4 Ohms

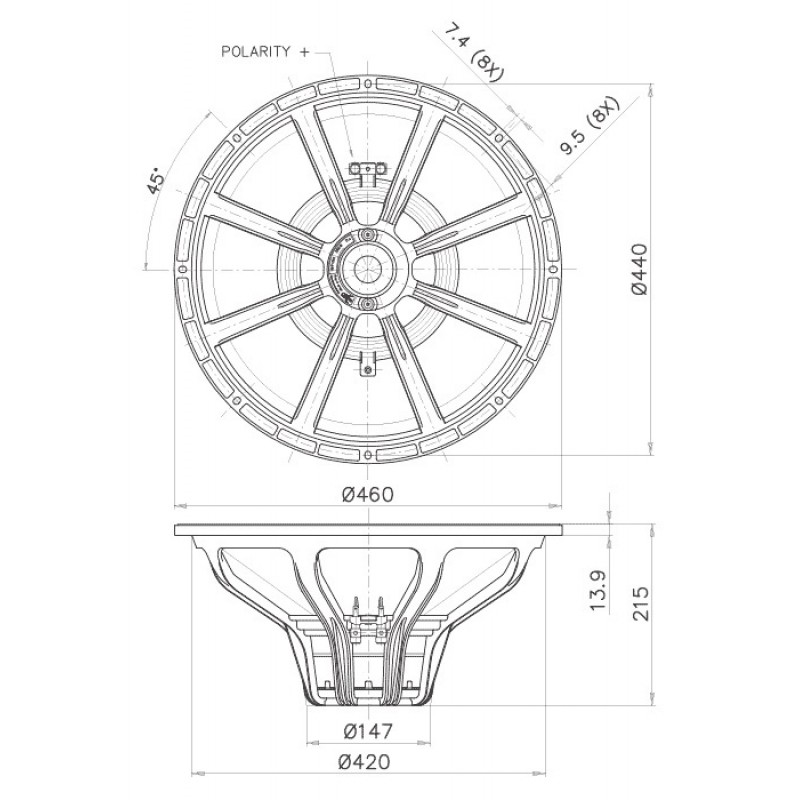

Nominal Specifications



  • Nominal Diameter – 460 mm (18 in)
  • Overall Diameter – 460 mm (18.11 in)
  • Bolt Circle Diameter – 440 mm (17.32 in)
  • Baffle Cutout Diameter – 422 mm (16.61 in)
  • Depth – 215 mm (8.46 in)
  • Flange and Gasket Thickness – 13.9 mm (0.55 in)
  • Net Weight – 7.3 Kg (16.09 lb)
  • Shipping Box(Single Carton Box) – 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
  • Shipping Weight – 8.7 Kg (19.18 lb)

Technical Parameters



  • Nominal Impedance – 4 Ohm
  • Minimum Impedance – 3.8 Ohm
  • AES Power Handling (1) – 1200 W
  • Maximum Power Handling (2) – 2400 W
  • Sensitivity (1W/1m) – 98 dB
  • Frequency Range – 35-1600 Hz
  • Voice Coil Diameter – 100 mm (4 in)
  • Winding Material – Cu
  • Former Material – Glass Fiber
  • Winding Depth – 28.9 mm (1.14 in)
  • Magnetic Gap Depth – 12 mm (0.47 in)
  • Flux Density – 1.22 T
  • Magnet – Neodymium Ring
  • Basket Material – Aluminum
  • Demodulation – Aluminum Ring
  • Cone Surround (3) – Triple Roll
  • NET Air Volume filled by Loudspeaker – 5.3 l (0.187 ft^3)
  • Spider Profile – 2x non-adjacent symmetrical variable height waves



Thiele and small parameters



  • Fs – 35 Hz
  • Re – 2.9 Ohm
  • Qes – 0.34
  • Qms – 13.3
  • Qts – 0.33
  • Vas – 161.1 l (5.69 ft^3)
  • Sd – 1124 cm^2 (174.2 in^2)
  • Xmax (4) – 12.45 mm
  • Xdamage (5) – 21 mm
  • Mms – 230 g
  • Bl – 20.7 N/A
  • Le – 1.09 mH
  • Mmd – 207.2 g
  • Cms – 0.09 mm/N
  • Rms – 3.8 Kg/s
  • Eta Zero – 1.96 %
  • EBP – 103 Hz
