Faital PRO 18XL1800
2.105,11 lei
1.769,00 lei fără TVA
Disponibil pentru precomandă
0
People watching this product now!
Livrare rapidă
Produs garantat
Consultanță
Calitate garantată
Descriere

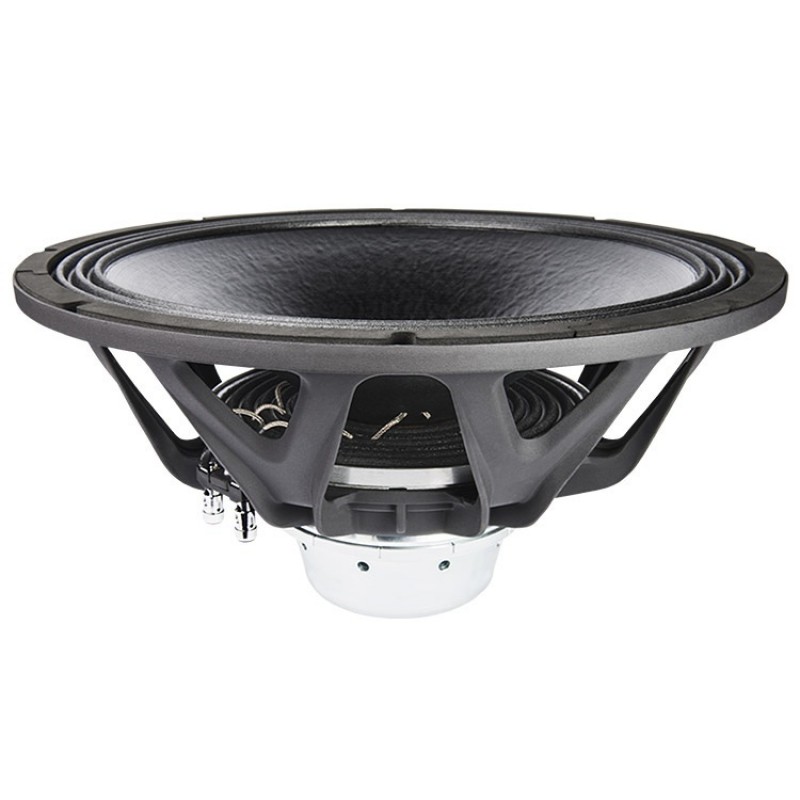

Faital Pro 18XL1800 18″ 1600W 8 Ohm Loudspeaker Driver

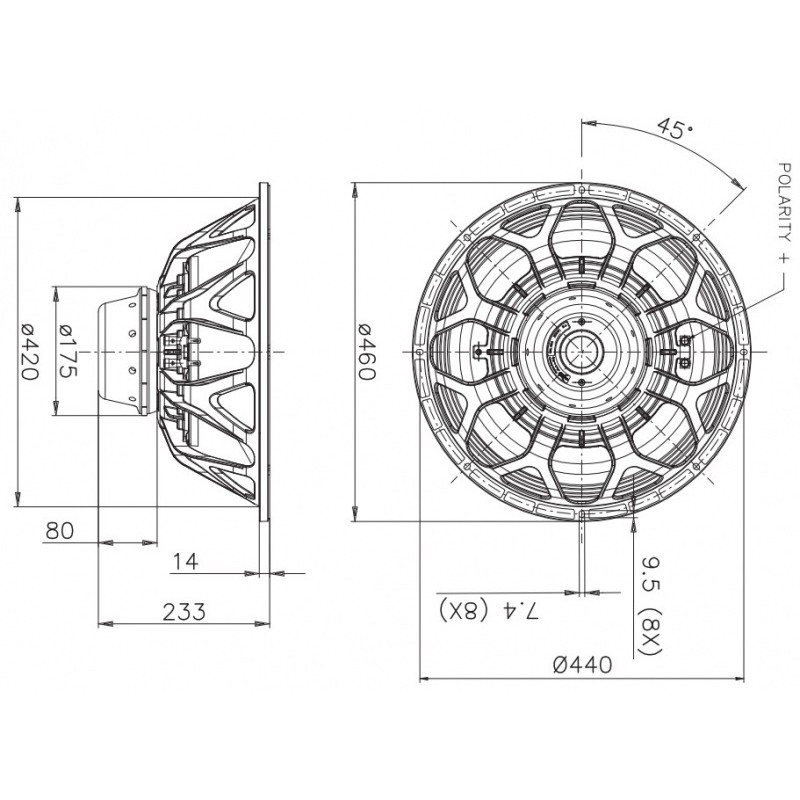

Nominal Specifications
- Nominal Diameter – 460 mm (18 in)
- Overall Diameter – 460 mm (18.11 in)
- Bolt Circle Diameter – 440 mm (17.32 in)
- Baffle Cutout Diameter – 422 mm (16.61 in)
- Depth – 233 mm (9.17 in)
- Flange and Gasket Thickness – 14 mm (0.55 in)
- Net Weight – 10.2 Kg (22.5 lb)
- Shipping Box(Single Carton Box) – 490 x 485 x 275 mm (19.3 x 19.1 x 10.8 in)
- Shipping Weight – 11.7 Kg (25.8 lb)
Technical Parameters
- Nominal Impedance – 8 Ohm
- Minimum Impedance – 6.7 Ohm
- AES Power Handling (1) – 1600 W
- Maximum Power Handling (2) – 3200 W
- Sensitivity (1W/1m) – 95 dB
- Frequency Range – 30-1600 Hz
- Voice Coil Diameter – 100 mm (4 in)
- Winding Material – Cu
- Former Material – Glass Fiber
- Winding Depth – 45 mm (1.77 in)
- Magnetic Gap Depth – 14 mm (0.55 in)
- Flux Density – 1.15 T
- Magnet – Neodymium Sectors
- Basket Material – Aluminum
- Demodulation – Aluminum Ring
- Cone Surround (3) – Triple Roll
- NET Air Volume filled by Loudspeaker – 7.3 l (0.258 ft^3)
- Spider Profile – 2x non-adjacent symmetrical constant height waves
Thiele and small parameters
- Fs – 29 Hz
- Re – 5.35 Ohm
- Qes – 0.42
- Qms – 9.9
- Qts – 0.4
- Vas – 185.8 l (6.56 ft^3)
- Sd – 1093.6 cm^2 (169.51 in^2)
- Xmax (4) – 20.17 mm
- Xdamage (5) – 36 mm
- Mms – 275.0 g
- Bl – 25.4 N/A
- Le – 2.04 mH
- Mmd – 254.5 g
- Cms – 0.11 mm/N
- Rms – 5.1 Kg/s
- Eta Zero – 1.06 %
- EBP – 69 Hz
