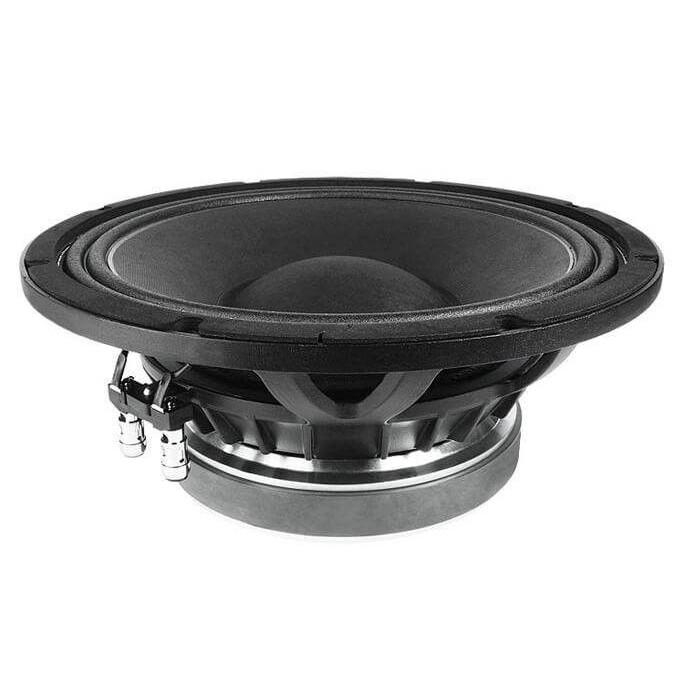

Faital Pro 12HP1010 – 8

Difuzor bass 12 inch Faital Pro 12HP1010 – 8 Ω.

Specificatii:
-Diametru nominal: 300 mm (12 in)
-Impedanta nominala: 8 Ω
-Impedanta minima: 7 Ω
-Putere nominala: 700 W
-Putere continua program: 1400 W
-Sensibilitate: 96 dB
-Gama frecventa: 45 – 3150 Hz
-Diametrul bobinei: 100 mm (4 in)
-Material bobina: aluminiu
-Material suport bobina: fibra de sticla
-Adancime bobina: 22 mm (0.87 in)
-Adancime piesa polara: 10.5 mm (0.41 in)
-Densitate flux magnetic: 1.05 T
-Magnet: Ferita
-Design surround: M-Roll

Parametri:
Fs 45 Hz
Re 5.5 Ω
Qes 0.35
Qms 9.4
Qts 0.33
Vas 50 dm3
Sd 496 cm2
Xmax 9.25 mm
Xdamage 21.9 mm
Mms 87.2 g
Bl 19.8 Txm
Le 1.33 mH
Mmd 80.5 g
Cms 0.14 mm/N
Rms 2.62 kg/s
η₀ 1.28 %
EBP 129 Hz

Dimensiuni si masa:
-Diametru total: 316 mm (12.44 in)
-Diametru gaurilor de prindere: 298.5 mm (11.75 in)
-Diametru gaurii de decupaj: 282 mm (11.10 in)
-Adancime difuzor: 142 mm (5.59 in)
-Grosime sasiu: 12 mm (0.47 in)
-Volum ocupat de driver: 3.3 litri (0.177 ft3)
-Masa neta: 9.2 Kg (120.3 lb)
-Masa totala cu ambalaj: 10 Kg (22 lb)
-Dimensiuni cutie difuzor: 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in)
