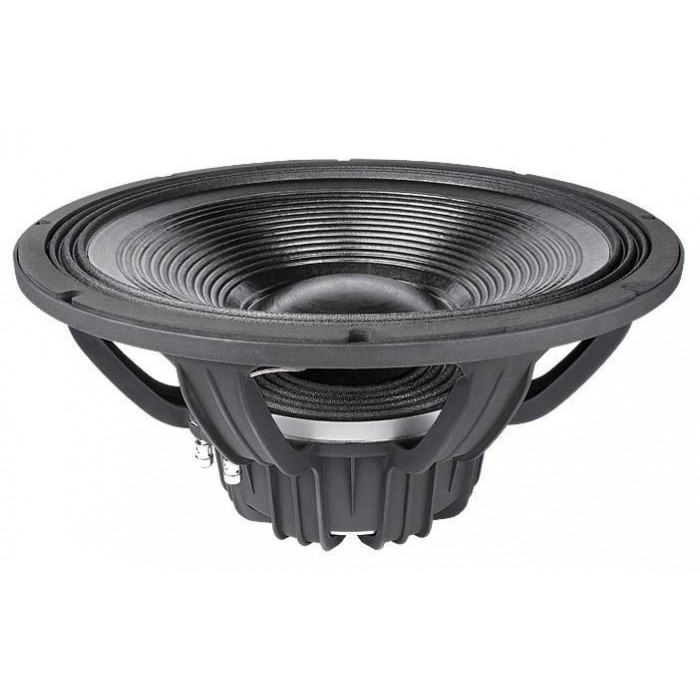

Faital Pro 18HP1030 – 4

Difuzor bass Faital Pro 18XL2000 (4ohm).

Specificatii:
-Diametru nominal: 460 mm (18 in)
-Impedanta nominala: 4 Ω
-Impedanta minima: 3.9 Ω
-Putere nominala: 1200 W
-Putere continua program: 2400 W
-Sensibilitate: 98 dB
-Gama frecventa: 35 – 1600 Hz
-Diametrul bobinei: 100 mm (4 in)
-Material bobina: cupru
-Material suport bobina: fibra de sticla
-Adancime bobina: 28.9 mm (1.14 in)
-Adancime piesa polara: 12 mm (0.47 in)
-Densitate flux magnetic: 1.1 T
-Magnet: Ferrite Ring
-Design surround: Triple Roll

Parametri:
Fs 35 Hz
Re 2.9 Ω
Qes 0.33
Qms 12.3
Qts 0.32
Vas 150.6 dm3
Sd 1124 cm2
Xmax 12.45 mm
Xdamage 23.1 mm
Mms 246.3 g
Bl 21.7 Txm
Le 1.08 mH
Mmd 224.6 g
Cms 0.08 mm/N
Rms 4.39 kg/s
η₀ 1.88 %
EBP 106 Hz

Dimensiuni si masa:
-Diametru total: 460 mm (18.11 in)
-Diametru gaurilor de prindere: 440 mm (17.32 in)
-Diametru gaurii de decupaj: 421 mm (16.57 in)
-Adancime difuzor: 208.35 mm (8.20 in)
-Grosime sasiu: 13.7 mm (0.54 in)
-Volum ocupat de driver: 6.5 litri (0.230 ft3)
-Masa neta: 12.1 Kg (26.7 lb)
-Masa totala cu ambalaj: 13.5 Kg (29.8 lb)
-Dimensiuni cutie difuzor: 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
