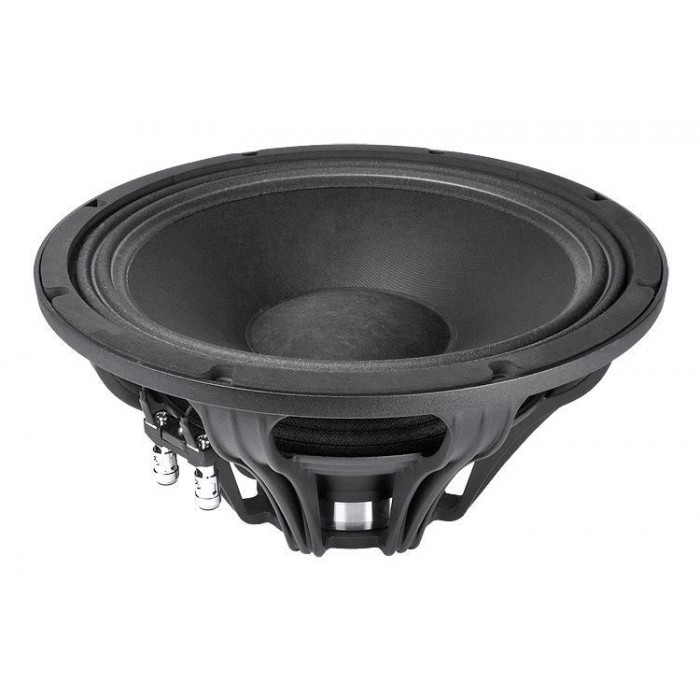

Faital Pro 12FH510 – 8

Difuzor bass Faital Pro 12FH510 (8 ohm).

Specificatii:
-Diametru nominal: 300 mm (12 in)
-Impedanta nominala: 8 Ω
-Impedanta minima: 6.4 Ω
-Putere nominala: 500 W
-Putere continua program: 1000 W
-Sensibilitate: 98 dB
-Gama frecventa: 45 – 3150 Hz
-Diametrul bobinei: 77 mm (3 in)
-Material bobina: aluminiu
-Material suport bobina: fibra de sticla
-Adancime bobina: 18.5 mm (0.73 in)
-Adancime piesa polara: 10.5 mm (0.41 in)
-Densitate flux magnetic: 1.2 T
-Magnet: Ferita
-Suspensie: M-Roll

Parametri:
Fs 45 Hz
Re 5.1 Ω
Qes 0.25
Qms 10.9
Qts 0.24
Vas 81.3 dm3
Sd 533 cm2
Xmax 7.5 mm
Xdamage 21.5 mm
Mms 61 g
Bl 18.9 Txm
Le 0.9 mH
Mmd 47.1 g
Cms 0.21 mm/N
Rms 1.6 kg/s
η₀ 2.92 %
EBP 180 Hz

Dimensiuni si masa:
-Diametru total: 316 mm (12.44 in)
-Diametrul gaurilor de prindere: 298.5 mm (11.75 in)
-Diametrul gaurii de decupaj: 282 mm (11.1 in)
-Adancime difuzor: 140 mm (5.51 in)
-Grosime sasiu: 12 mm (0.47 in)
-Volum ocupat de driver: 2.9 litri (0.102 ft3)
-Masa neta: 7.8 Kg (17.2 lb)
-Masa totala cu ambalaj: 8.7 Kg (19.2 lb)
-Dimensiuni cutie difuzor: 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
