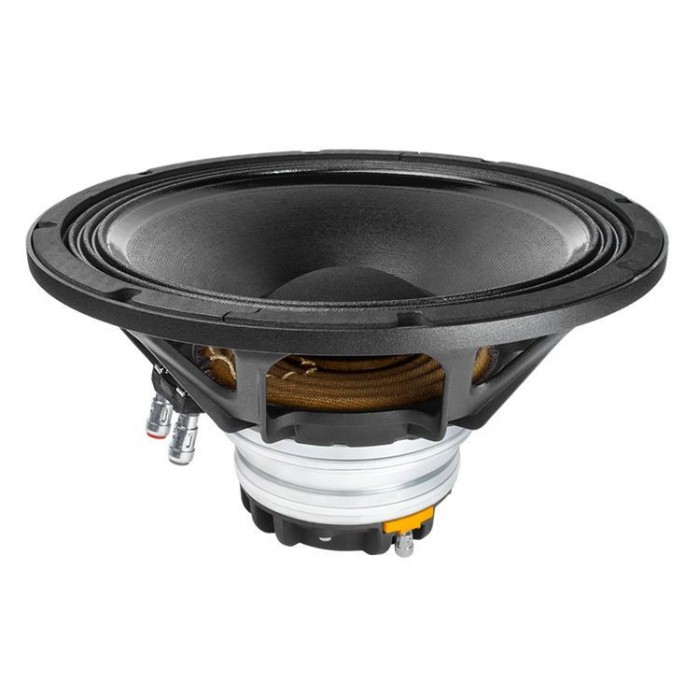

Faital Pro 12HX500 – 8

Difuzor coaxial de 12 inch Faital Pro 12HX500 – 8 Ω.

Specificatii:
-Diametru nominal: 300 mm (12 in)
-Impedanta nominala: 8 Ω – 8 Ω
-Impedanta minima LF – HF: 6.6 – 7.2 Ω
-Putere nominala LF – HF: 400 – 90 W
-Putere continua program LF – HF: 800 – 180 W
-Sensibilitate LF – HF: 95 – 105 dB
-Gama frecventa LF: 50 – 4000 Hz
-Gama frecventa HF: 500 – 20000 Hz
-Diametrul bobinei LF – HF: 77 – 74 mm (3 – 2.9 in)
-Material bobina LF – HF: aluminiu -aluminiu
-Material suport bobina LF – HF: fibra de sticla – kapton
-Adancime bobina LF – HF: 21.5 mm (0.85 in) – 3.5 mm (0.14 in)
-Adancime piesa polara :9 mm (0.35 in) 3.7 mm (0.15 in)
-Densitate flux magnetic LF – HF: 1.2 – 2 T
-Frecventa minima de taiere recomandata: 0.9 kHz
-Unghi dispersie HF: 100°
-Magnet: Neodimium
-Design surround: Triple Roll

Parametri:
Fs 55 Hz
Re LF 5.6 Ω
Re HF 5.66 Ω
Qes 0.39
Qms 7.3
Qts 0.37
Vas 57.8 dm3
Sd 540 cm2
Xmax 9.25 mm
Xdamage 18.5 mm
Mms 58.88 g
Bl 17.4 Txm
Le 0.57 mH
Mmd 44.7 g
Cms 0.14 mm/N
Rms 2.8 kg/s
η₀ 2.48 %
EBP 141 Hz

-Dimensiuni si masa:
-Diametru total: 316 mm (12.44 in)
-Diametru gaurilor de prindere: 298.5 mm (11.75 in)
-Diametru gaurii de decupaj: 280 mm (11.02 in)
-Adancime difuzor: 175 mm (6.89 in)
-Grosime sasiu: 12 mm (0.47 in)
-Masa neta: 5.5 kg (12.1 lb)
-Masa totala cu ambalaj: 6.2 kg (13.7 lb)
-Dimensiuni cutie difuzor: 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in)
