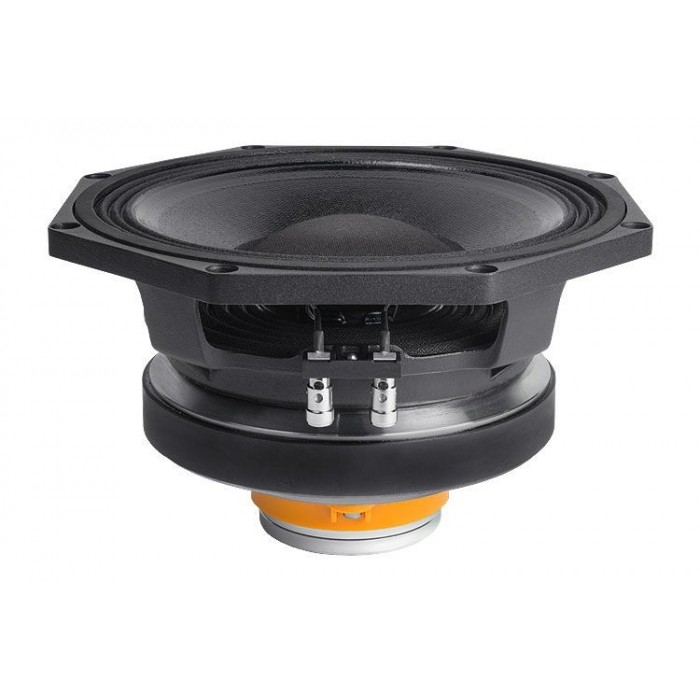

Faital Pro 8HX230 – 8

Difuzor coaxial de 8 inch Faital Pro 8HX230 – 8 Ω.

Specificatii:
-Diametru nominal: 200 mm (8 in)
-Impedanta nominala: 8 Ω – 8 Ω
-Impedanta minima LF – HF: 8 – 7 Ω
-Putere nominala LF – HF: 250 – 30 W
-Putere continua program LF – HF: 500 – 60 W
-Sensibilitate LF – HF: 94 – 105 dB
-Gama frecventa LF: 70 – 4000 Hz
-Gama frecventa HF: 1200 – 20000 Hz
-Diametrul bobinei LF – HF: 65 – 37 mm (2.56 – 1.46 in)
-Material bobina LF – HF: aluminiu
-Material suport bobina LF – HF: fibra de sticla – kapton
-Adancime bobina LF – HF: 15 mm (0.59 in) – 2.1 mm (0.08 in)
-Adancime piesa polara : 8 mm (0.31 in) 2.6 mm (0.1 in)
-Densitate flux magnetic LF – HF: 1.12 – 1.85 T
-Frecventa minima de taiere recomandata: 1.7 kHz
-Unghi dispersie HF: 100°
-Magnet: Ferita – Neodimium
-Design surround: Triple Roll

Parametri:
Fs 70 Hz
Re LF 6.5 Ω
Re HF 5.5 Ω
Qes 0.31
Qms 6
Qts 0.29
Vas 14.7 dm3
Sd 223 cm2
Xmax 6.17 mm
Xdamage 15.5 mm
Mms 24.4 g
Bl 15 Txm
Le 0.59 mH
Mmd 20.6 g
Cms 0.21 mm/N
Rms 1.8 kg/s
η₀ 1.58 %
EBP 226 Hz

Dimensiuni si masa:
-Diametru total: 223.75/207.9 mm (8.81/8.18 in)
-Diametrul gaurilor de prindere: 210 mm (8.27 in)
-Diametrul gaurii de decupaj: 183 mm (7.2 in)
-Adancime difuzor: 126.5 mm (4.98 in)
-Grosime sasiu: 10.7 mm (0.42 in)
-Masa neta: 4.7 kg (10.4 lb)
-Masa totala cu ambalaj: 5 kg (11 lb)
-Dimensiuni cutie difuzor: 235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in)
