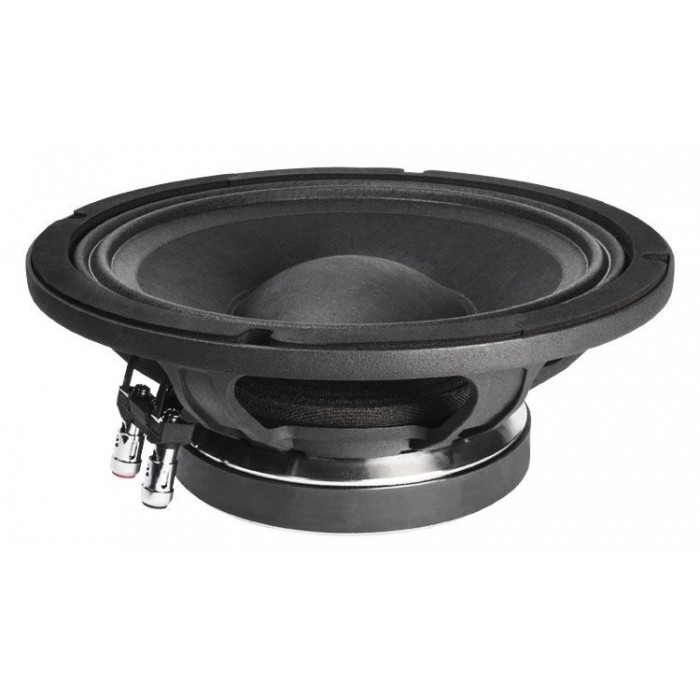

Woofer Faital Pro 10PR330-16

Difuzor bass Faital Pro 10PR330 (16 Ω).

Specificatii:

-Diametru nominal: 250 mm (10 in)
-Impedanta nominala: 16 Ω
-Impedanta minima: 13.4 Ω
-Putere nominala: 300 W
-Putere continua program: 600 W
-Sensibilitate: 95 dB
-Gama frecventa: 60 – 3150 Hz
-Diametrul bobinei: 65 mm (2.56 in)
-Material bobina: aluminiu
-Material suport bobina: fibra de sticla
-Adancime bobina: 17.2 mm (0.68 in)
-Adancime piesa polara: 8 mm (0.31 in)
-Densitate flux magnetic: 1.2 T
-Magnet: Ferita
-Suspensie: M-Roll
-Parametri Difuzor bass Faital Pro 10PR330 (16 Ω):

Fs 60 Hz
Re 11.3 Ω
Qes 0.4
Qms 3.6
Qts 0.36
Vas 32.9 dm3
Sd 348 cm2
Xmax 7.27 mm
Xdamage 15.25 mm
Mms 36.1 g
Bl 19.5 Txm
Le 1.12 mH
Mmd 28.8 g
Cms 0.19 mm/N
Rms 3.8 kg/s
η₀ 1.7 %
EBP 150 Hz
Dimensiuni si masa:

-Diametru total: 261 mm (10.28 in)
-Diametrul gaurilor de prindere: 246 mm (9.69 in)
-Diametrul gaurii de decupaj: 230 mm (9.06 in)
-Adancime difuzor: 111 mm (4.37 in)
-Grosime sasiu: 12 mm (0.47 in)
-Volum ocupat de driver: 1.3 litri (0.046 ft3)
-Masa neta: 4.1 Kg (9 lb)
-Masa totala cu ambalaj: 4.7 Kg (10.4 lb)
-Dimensiuni cutie difuzor: 282 x 280 x 140 mm (11.1 x 11 x 5.5 in)
